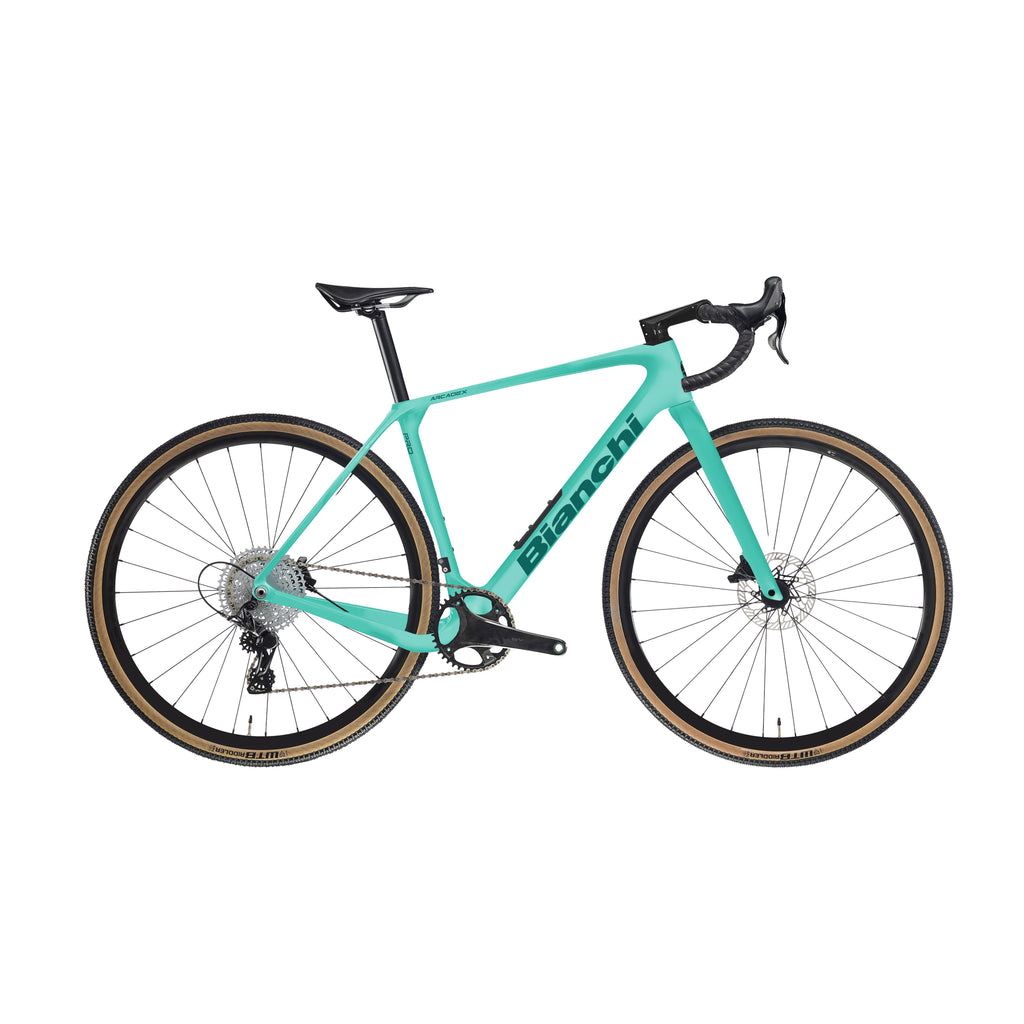

Bianchi Arcadex Pro GRX 820 Carbon Gravel Bike

AF - Matte Sky Blue / XS

€2.999,00 EUR

€2.999,00 EUR €4.199,00 EUR

Bianchi Arcadex Pro GRX 820 Carbon Gravel Bike

€2.999,00 EUR

€2.999,00 EUR €4.199,00 EUR

Color AF - Matte Sky Blue AW - Matte Green Metallic

Cut XS S M L XL

AVAILABLE

REQUEST A PERSONALIZED QUOTE

Pickup available at Via Sempione 36

Usually ready in 24 hours

If the product you are looking for is not available, order it by sending us an email.

Buying from abroad.
If the site detects an address outside the EU, the price you see already excludes Italian VAT. On arrival you pay your own country's import charges, which the courier collects before delivery.
United Kingdom: 20% import VAT plus the courier's clearance fee, and customs duty on models that don't qualify for EU preferential origin — budget around £1,000 on a £5,000 bike.
Switzerland: 8.1% import VAT, no customs duty.
For EU businesses with a valid VAT number we invoice under reverse charge. Full details on VAT, shipping and warranty — or ask us for a quote and we will confirm the exact landed cost before you order.

If the shipping cost seems high, fill out the form at the link below and we'll try to provide you with a better quote.
REQUEST A BETTER QUOTE

PRODUCT DESCRIPTION

A carbon gravel bike with Shimano GRX 820 1x12 gearing, ideal for exploring the world and going on adventures on two wheels.

Bianchi Arcadex PRO – Technical Data Sheet

Component	Detail
Chassis	Arcadex PRO – Frame Kit
	Disc brakes: Flat mount 140/160 mm
	Bottom bracket: PressFit 86.5 x Ø41 mm
	Rear axle: 12mm thru axle OLD 142mm
	Front derailleur: not supported
	Rear derailleur: SRAM UDH type
Fork	Bianchi Arcadex in carbon fiber
	Disc brakes: Flat mount 140/160 mm
	Front axle: 12mm thru axle OLD 100mm
	Wheelbase: ETRTO 622-50 mm
	Head tube diameter: 1 1/8"
Headset	Bianchi Custom Acros ICR – integrated cable routing
Gear shift controls	Shimano GRX 820 ST/BL-RX820
Rear derailleur	Shimano GRX 822 RD-RX822 SGS – Max sprocket 51T
Crankset	Shimano GRX 820 FC-RX820-1, 40T
	Lengths: 170 mm (XS–SM), 172.5 mm (MD–LG), 175 mm (XL)
Bottom bracket	Shimano SM-BB72-41B – Press fit
Chain	Shimano CN-M7100
Sprocket pack	Shimano CS-M7100 – 12-speed, 11-51T – MicroSpline
Brakes	Shimano BR-RX820 hydraulic brakes
Brake discs	Shimano SM-RT70 IceTech – 160 mm (front and rear), Centerlock
Wheels	Velomann Terbium – Clincher and tubeless compatible
	Diameter: 700C – Material: Carbon
	Rim height: 30 mm – Internal width: 25 mm
Tires	Pirelli Cinturato™ Gravel M Classic, 45-622, tan sidewall
Handlebar stem	Velomann in AICR aluminum, rise -2°
	Ø steering: 1-1/8" – Ø handlebar connection: 31.8 mm
	Lengths: 80mm (XS), 90mm (SM), 100mm (MD), 110mm (LG), 120mm (XL)
Handlebar bend	Velomann Gravel ICR Aluminum
	Flare: 16° – Drop: 130 mm – Reach: 70 mm
	Widths: 400 mm (XS–SM), 420 mm (MD–LG), 440 mm (XL)
Handlebar tape	Bianchi Hexagon tape – 2.5 mm, solid black color
Seatpost	Velomann Carbon UD – Ø27.2 mm
	Lengths: 300 mm (XS), 350 mm (SM–MD–LG–XL)
Saddle	Velomann MITORA 149 H1
	Technical coating – Foam padding – Carbon reinforced shell
	Central hole – Aisi rails – Length: 250 mm – Width: 149 mm – Weight: 230 g ± 2
